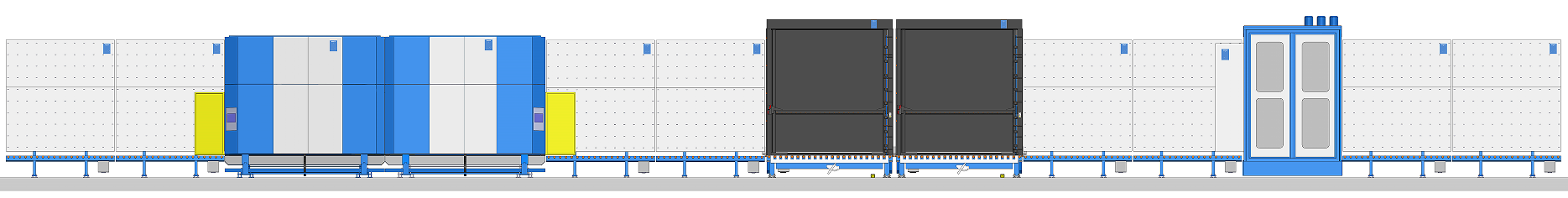

Flagship Line
Produce max. size IGU 3.0mx7.0m with gas filling, triple units, quadruple units, shape unit and steps unit etc. functions. There are two press robots in one IGU production line and press IGU synchronously or separately according to glass size, drastically increase production efficiency.
Remote diagnosis and technical support for trouble shooting, greatly reducing downtime and saving maintenance cost.
Technology specification | |
Specification | Data |
Height of glass plates | 190 mm – 3000 mm |
Length of glass plates | 350 mm – 7000 mm |
Thickness of glass plates | 3 mm – 45 mm |
Thickness of IG units | 10 mm – 70 mm |
Max. load | 250 kg/m, 1000 kg/unit |
Spacer width | 6 mm – 27 mm |
Joint depth | 2 mm – 30 mm |
Glass inclination | 6.0° |
Working height | 550 mm (± 20 mm) |
Transporting speed | 48 m/min |
