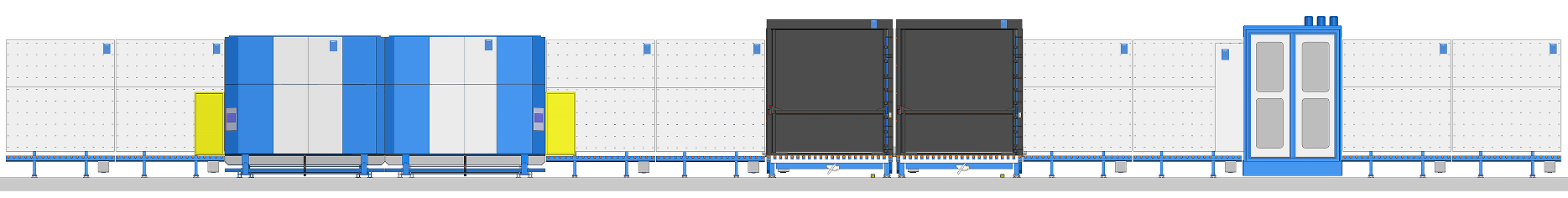

Heavy IG Line
Produce max. size IGU 3.3m x 7.0m with gas filling and 3.3m x 9.0m without gas filling, triple units, quadruple units, shape unit and steps unit etc. functions. Use air cushion conveyors to transport glass for avoiding roller print.
Remote diagnosis and technical support for trouble shooting, greatly reducing downtime and saving maintenance cost.
Technology specification | |
Specification | Data |
Height of glass plates | 190 mm – 3300 mm |
Length of glass plates | 350 mm – 9000 mm |
Thickness of glass plates | 3 mm – 45mm |
Thickness of IG units | 10 mm – 80 mm |
Max. load | 250 kg/m, 1000 kg/unit |
Spacer width | 6 mm – 30 mm |
Joint depth | 2 mm – 30 mm |
Glass inclination | 6.0° |
Working height | 550 mm (± 20 mm) |
